Wheelbarrows

Heavy-Duty Contractor & Industrial Wheelbarrows: Wholesale, OEM & Custom Manufacturing

Industrial operations, civil construction sites, and large-scale agricultural projects demand material handling equipment capable of enduring severe daily abuse. This category page outlines our wholesale manufacturing range of contractor-grade, heavy-duty, and utility wheelbarrows built for global importers and distributors. Every model is engineered to balance structural rigidity, center-of-gravity stability, and wear-resistant material selection to withstand rigorous load cycles.

Product Range

Contractor Heavy-Duty Steel Wheelbarrows

Built with deep-drawn, seamless carbon steel trays ranging from 1.2mm to 2.0mm thickness.
Reinforced front tray braces and thick undercarriage channels designed for abrasive aggregate, mortar, and heavy brick transport.

Heavy-Duty Poly Tray Wheelbarrows

Impact-resistant, UV-stabilized high-density polyethylene (HDPE) trays.
Impervious to chemical corrosion, fertilizer salts, and wet concrete adhesion, reducing cleaning downtime.

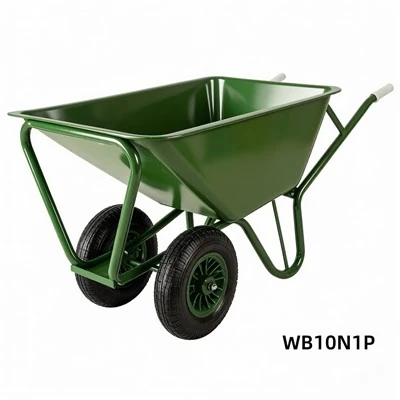

Dual-Wheel Landscape & Utility Wheelbarrows

Dual pneumatic or flat-free configuration widening the footprint to distribute weight across uneven terrain, preventing tipping during lateral shifts.

Landscaping & Garden Wheelbarrows

Lightweight yet rigid medium-capacity models optimized for soil, mulch, and yard debris transport by commercial landscaping contractors.

Key Features & Construction

Tray Architecture & Forming: Trays are cold-pressed from single-sheet carbon steel or rotational-molded high-density polymer, eliminating weak seams prone to splitting under dynamic shock loads.

Undercarriage & Leg Stabilizers: Frame assemblies utilize continuous-bend tubular steel welded to thick front nose guards that double as dumping pivots. Integrated leg shoes prevent sinking into mud and soft soil.

Tray-to-Frame Fastening: Secured with grade-8 equivalent carriage bolts countersunk flush inside the tray interior, preventing shovel blade catching and bolt shearing under torsional stress.

Wheel Assembly & Bearings: Equipped with heavy-duty pneumatic rubber tires or micro-cellular polyurethane flat-free tires mounted on heavy-gauge steel rims fitted with precision ball bearings or bronze bushings.

Technical Specifications

Tray Capacity (Heaped)	Tray Material & Thickness	Max Load Rating	Wheel Configuration	Undercarriage Tube Specs
6 cu. ft. (170 L)	1.5mm Cold-Rolled Steel	400 kg (880 lbs)	16" x 4.00-8 Pneumatic (4-Ply)	32mm x 1.5mm Steel Tube
6 cu. ft. (170 L)	6mm UV-Stabilized HDPE	350 kg (770 lbs)	16" x 4.00-8 Flat-Free Polyurethane	32mm x 1.5mm Steel Tube
5 cu. ft. (140 L)	1.2mm Cold-Rolled Steel	300 kg (660 lbs)	14" x 3.50-8 Pneumatic	28mm x 1.2mm Steel Tube
8 cu. ft. (220 L)	2.0mm Heavy Steel (Dual Wheel)	500 kg (1100 lbs)	Dual 16" Solid Rubber	38mm x 2.0mm Heavy Channel

Applications

Commercial Construction

Transporting wet concrete, mortar, bricks, tiles, and heavy site demolition debris.

Landscaping & Horticulture

Hauling topsoil, gravel, stone pavers, mulch, and bulk organic fertilizer.

Agriculture & Livestock

Managing feed distribution, manure clearing, and general farm utility transport.

Industrial Facility Maintenance

Handling scrap metal, factory waste, and heavy maintenance components.

OEM & Custom Manufacturing

Dimensional & Structural Customization: Modification of tray gauge, volumetric capacity, tray depth, and undercarriage bracing geometry to match regional market preferences.

Branding & Surface Finishing: Powder coating color matching via RAL color cards, laser-etched logo plates, custom-printed tire sidewalls, and branded instruction manuals.

Handle Configurations: Selection of straight hardwood handles, ergonomic loop handles, or wrapped tubular steel grips.

Sample Development & Testing: Prototype fabrication based on CAD drawings or physical sample reverse engineering within 14 business days.

productcate-1-1

Manufacturing & Quality Control

Raw Material Verification: Incoming steel sheets undergo spectrometer testing to verify carbon and alloy content against standard mills specs.

Automated Stamping & Welding: Hydraulic press lines ranging from 300 to 800 tons form seamless trays, followed by robotic MIG welding for uniform penetration along structural joints.

Surface Treatment & Curing: Multi-stage alkaline degreasing and iron phosphate conversion lines precede electrostatic powder coating, cured at 200°C for salt-spray corrosion resistance exceeding 500 hours.

Load & Durability Testing: Random batch testing subjects assembled wheelbarrows to dynamic drop tests and static overload testing up to 150% of rated capacity.

Packaging & Bulk Order Support

Knocked-Down (KD) Bulk Packing

Trays nested in stacks of 10 to 20 units; undercarriages, legs, and handles bundled securely with steel strapping and protective edge guards to maximize 40ft HQ container utilization.

Retail-Ready Individual Boxing

Corrugated carton packaging available for hardware store drop-ship channels, including hardware installation kits.

Logistics Execution

Direct factory loading with container weight distribution planning and strict compliance with international ISPM 15 heat-treated wood packaging standards.

FAQ

Q: What is the standard Minimum Order Quantity (MOQ) for custom-branded wheelbarrows?

A: The standard MOQ is one 20-foot container (FCL), typically accommodating mixed model configurations. Specific branding modifications may require dedicated production runs.

Q: Can tray thickness be customized above standard catalog offerings?

A: Yes. We can process cold-rolled steel up to 2.0mm thickness for high-wear municipal and heavy construction applications.

Q: What is the difference between pneumatic tires and flat-free polyurethane tires in bulk orders?

A: Pneumatic tires offer shock absorption on rough terrain but require air maintenance. Solid polyurethane flat-free tires eliminate puncture risks on demolition sites containing nails and sharp debris.

Q: How are replacement parts handled for wholesale distributors?

A: We supply modular components—including spare trays, unmounted wheels, axles, and hardware packs—shipped alongside container orders to support aftermarket replacement needs.

Q: What surface coatings are used to prevent frame rust?

A: All steel undercarriages undergo chemical degreasing, rust-inhibiting phosphating, and electrostatic polyester powder coating, outperforming standard liquid spray paint.

Q: What are your standard payment terms for container-load orders?

A: Standard terms are T/T (30% deposit upon order confirmation, 70% balance against copy of Bill of Lading) or confirmed L/C at sight for qualifying accounts.

Q: What is the standard lead time from order confirmation to port delivery?

A: Production and container loading typically require 25 to 35 days, depending on seasonal volume and custom color or tooling requirements.

Qingdao Herzhe Tools Manufacturing Co., Ltd. is one of the most professional wheelbarrows manufacturers and suppliers in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy advanced wheelbarrows at competitive price from our factory.
