Heavy-Duty Steel Tool Carts & Mobile Service Cabinets for Industrial Distribution

Automotive workshops and manufacturing plants require mobile tool storage engineered to support heavy diagnostic gear and withstand high-impact shop environments. This category details manufacturing specifications, structural configurations, and load ratings for steel service carts, multi-drawer tool chests, and heavy-duty rolling cabinets. Designed for volume importers, tool brands, and industrial distributors, this product lineup addresses structural stability under dynamic load, drawer retention security, and corrosion resistance against workshop fluids.

Tool Cart Types

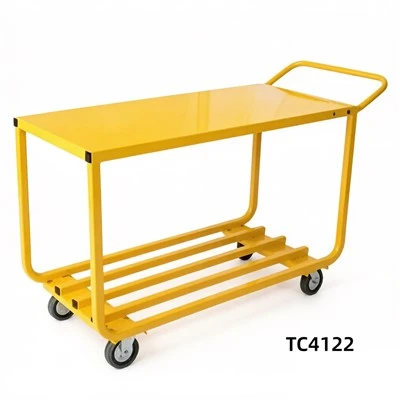

Open-Shelf Service Carts

Two or three-tier heavy-gauge steel shelves with integrated utility trays, built for quick access to hand tools and fluid containers.

Multi-Drawer Roller Cabinets

Combination configurations featuring shallow and deep drawers equipped with ball-bearing slides and central cylinder locking mechanisms.

Cabinet-Style Utility Carts

Enclosed lockable storage compartments paired with pegboard side panels for hanging heavy wrenches, air hoses, and specialized fixtures.

Mobile Workbenches with Carts

Integrated thick composite or steel work surfaces mounted on heavy-duty structural chassis for on-site assembly operations.

Key Features & Construction

Chassis & Body Rigidity: Fabricated from cold-rolled structural steel sheets (ranging from 1.0mm to 1.5mm body thickness) joined via automated resistance spot welding and robotic seam welding.

Surface Protection: Multi-stage alkaline degreasing and iron phosphate pretreatment followed by electrostatic industrial powder coating, resistant to brake fluid, hydraulic oil, and solvent exposure.

Mobility & Casters: Heavy-duty industrial casters (two fixed, two swivel with total-lock brakes) featuring high-durometer polyurethane treads mounted on steel hubs with roller bearings.

Drawer Operation: Full-extension ball-bearing drawer slides rated for 45 kg to 90 kg per pair, featuring anti-tip single-drawer interlock systems to prevent cart destabilization.

Technical Specifications

Configuration	Overall Load Capacity (Max)	Sheet Gauge Thickness	Drawer / Shelf Count	Caster Specification	Locking System
3-Tier Open Shelf	250 kg (550 lbs)	1.0 mm Frame	3 Open Trays	5" x 1.25" TPR Swivel/Brake	None
4-Drawer Service Cart	350 kg (770 lbs)	1.2 mm Body	4 Drawers + Top Tray	5" x 2" Heavy-Duty Polyurethane	Central Cylinder Lock
7-Drawer Roller Cabinet	500 kg (1100 lbs)	1.4 mm Frame / 1.0 mm Drawers	7 Ball-Bearing Drawers	6" x 2" Industrial Cast Iron Core	Anti-Tip Interlock + Key Lock
Heavy Workbench Cart	800 kg (1760 lbs)	1.5 mm Structural Steel	2 Doors + 3 Drawers	8" x 2.5" Forged Steel Hub	Padlock-Compatible Hasp

Applications

Automotive Repair Garages

Transporting pneumatic impact wrenches, diagnostic scanners, socket sets, and fluid catch pans between vehicle bays.

Aerospace & Heavy Machinery

Organizing calibration tools, torque wrenches, and heavy electrical components in restricted maintenance zones.

Manufacturing Assembly Lines

Staging line-side component hardware, pneumatic assembly tools, and replacement parts directly next to workstations.

Trade & Vocational Schools

Providing durable, secure student tool storage resistant to high-frequency institutional abuse.

OEM & Custom Manufacturing

Dimensional & Layout Adjustments: Custom overall height, width, depth, drawer depth ratios, and shelf lip configurations.

Visual & Brand Integration: Custom Pantone powder coating colors, silk-screened or laser-cut company logos on drawer faces, and private-label user manuals.

Accessory Integration: Optional side-mounted spray can holders, power strip cutouts, custom foam drawer organizers (EVA tool shadow boards), and heavy-duty push handles.

Prototyping & Sampling: 3D structural load simulation and rapid sample fabrication within 15 business days based on client technical drawings or sample specifications.

productcate-1-1

Manufacturing & Quality Control

CNC Laser Cutting & Turret Punching

Automated sheet metal processing ensures dimensional hole alignment and tight panel tolerances (+/-0.05 mm).

Hydraulic Press Bending

CNC press brakes with multi-axis crowning systems ensure uniform box-section rigidity and eliminate panel oil-canning.

Dynamic Load & Impact Testing

Sample carts undergo 10,000 rolling cycles on obstacle test tracks carrying 120% of rated capacity, alongside drawer slam-shut durability tests.

Corrosion & Salt-Spray Audits

Sample panels undergo 500-hour neutral salt-spray testing to verify adhesion and film thickness of industrial powder finishes (>=60 um).

Packaging & Bulk Order Support

Export-Grade KD Packaging

Knock-down or fully assembled configurations packed in heavy-duty 7-layer corrugated cartons reinforced with internal honeycomb board and corner protectors.

Hardware & Accessory Kits

Fasteners, keys, handles, and casters packed in labeled sub-boxes or blister cards to prevent transit scratching against painted panels.

Container Optimization

Palletized or floor-loaded stacking layouts engineered for maximum 20GP and 40HQ container space efficiency.

Shipping Documentation

Full commercial documentation suite provided, including Certificate of Origin, Bill of Lading, Packing List, and Commercial Invoice.

FAQ

Q: What is the Minimum Order Quantity (MOQ) for custom drawer configurations and brand colors?

A: The standard MOQ for custom powder coating colors and branded drawer badges is 100 units per model. For completely custom structural tooling, the MOQ is 300 units.

Q: Are replacement drawer slides and casters available for warranty support?

A: Comprehensive spare parts kits (including replacement ball-bearing slides, casters, lock cylinders, and drawer pulls) are supplied at a negotiated percentage alongside bulk container shipments.

Q: What gauge of steel is used for the drawer bodies and structural frames?

A: Cold-rolled commercial steel sheets ranging from 1.0mm to 1.5mm thickness sourced from primary steel mills are utilized, ensuring high structural load integrity without panel flexing.

Q: Do the rolling cabinets feature anti-tip safety mechanisms?

A: Multi-drawer roller cabinets incorporate an anti-tip single-drawer interlock system that permits only one drawer to be opened at a time, preventing the cart from tipping forward under heavy loads.

Q: What is the maximum weight capacity per individual drawer?

A: Standard ball-bearing drawers support 45 kg (100 lbs) uniformly distributed, while heavy-duty reinforced drawer slides support up to 90 kg (200 lbs) per pair.

Q: How do you protect the cart surfaces from scratching during ocean transit?

A: Every painted panel is interleaved with protective polyethylene foam sheeting, and external corners are secured with high-density foam buffers inside 7-layer export cartons.

Q: What is the standard production lead time for container orders?

A: Standard production lead time ranges from 30 to 40 days following receipt of deposit and technical drawing approval.

Q: Are your manufacturing processes certified under quality management systems?

A: Production facilities operate under ISO 9001 quality management standards, and welding operations comply with ISO 3834 structural welding requirements.

Qingdao Herzhe Tools Manufacturing Co., Ltd. is one of the most professional tool carts manufacturers and suppliers in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy advanced tool carts at competitive price from our factory.
